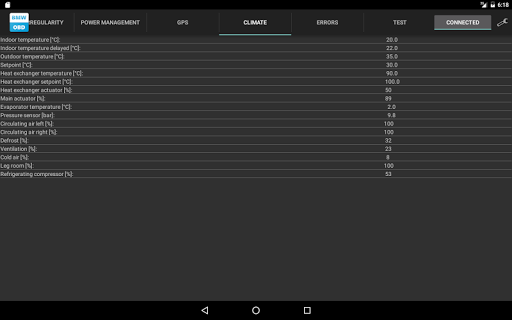

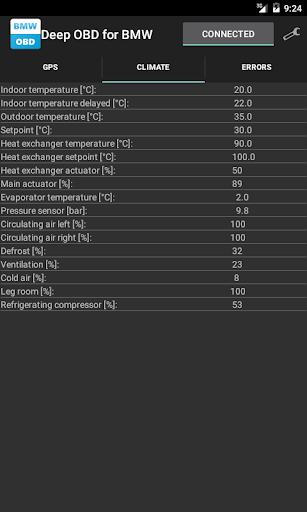

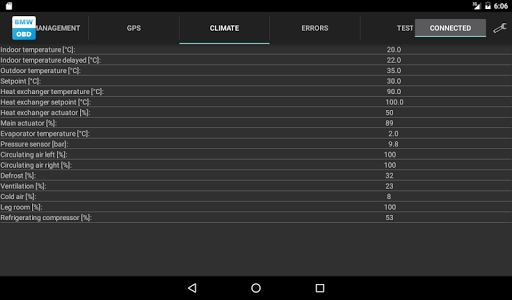

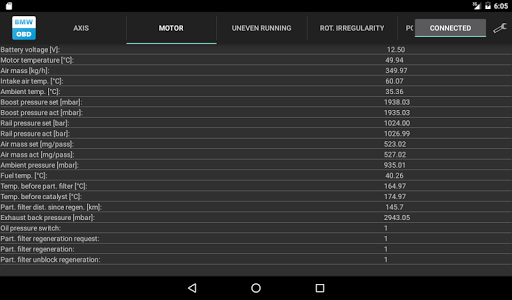

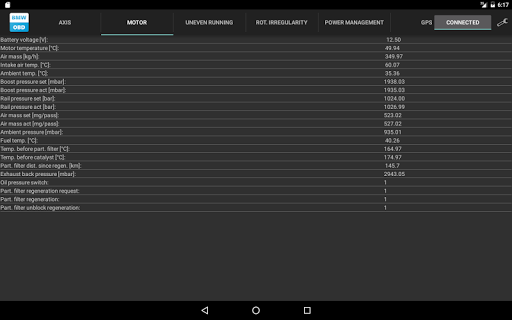

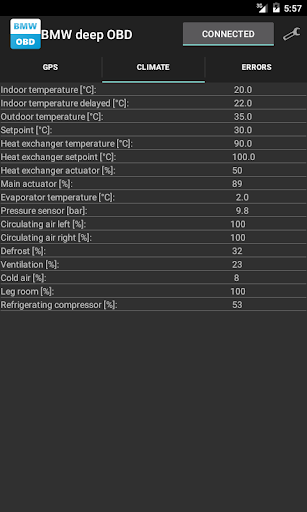

Realtime vehicle diagnostics and logging using various OBD adapter types.
Live data view in Android Auto is also supported.
This open source app uses ECU files for OBD communication.
Theoretically all operations that are possible with ISTA-D, INPA or Tool32, could be also executed with this application.
At the moment only vehicles from BMW and VAG are supported.

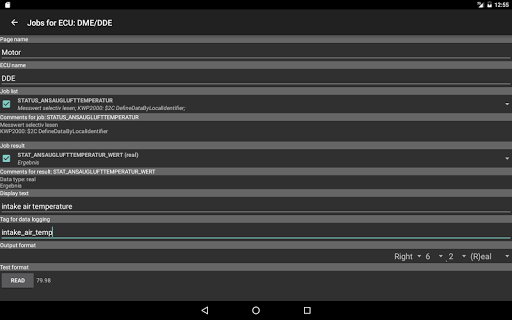

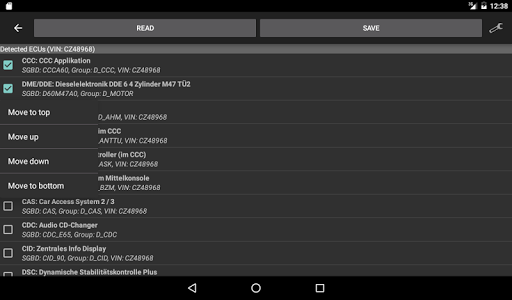

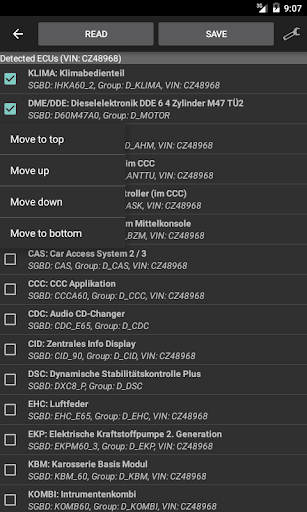

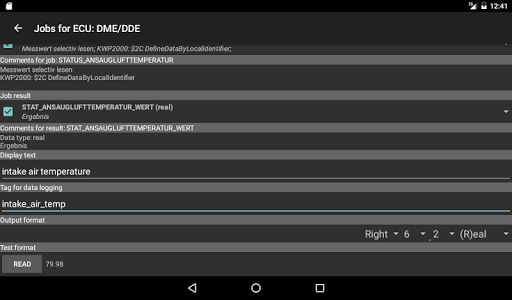

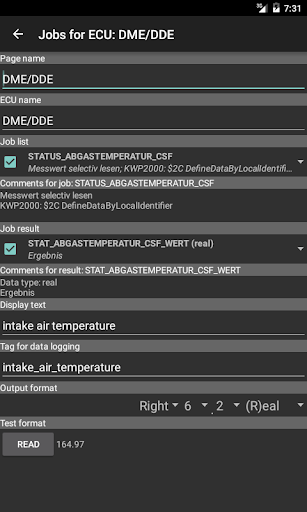

With a configuration generator simply select the diagnostics jobs to execute and create your own configuration files.
For complex tasks the configurations files could be created manually.
The app requires 2.5 GB of free external storage.
The application supports the following OBD II adapters:
- Standard FTDI based USB "INPA compatible" D-CAN/K-Line adapters (all protocols)
- ELM327 based Bluetooth and WiFi adapters. Recommended ELM327 versions are 1.4b, 1.5 and origin 2.1, which are based on PIC18F2480 processor (no MCP2515 chip) (D-CAN protocol only)
- Custom Bluetooth D-CAN/K-Line adapter (BMW-FAST protocol over D-CAN and K-Line)
- A replacement firmware for the ELM327 Bluetooth adapter is existing, that is faster, more stable and that also supports K-Line (required for VAG vehicles, supports protocols KWP2000, KWP1281, TP2.0)
- Deep OBD ENET WIFI adapter (for BMW F-models)
- BMW database update.
- Improved language selection.
- Added new translator.
- Using Android app bundles.
- Android 15 support.
- Android Auto support.
- Simulation file support.
- Fixed minor problems
- Added new translator.
- Using Android app bundles.
- Android 15 support.
- Android Auto support.
- Simulation file support.
- Fixed minor problems
- Android Auto support.
- Simulation file support.
- Fixed minor problems
- Android Auto support.
- Simulation file support.
- Fixed minor problems
- Start at boot option.
- ELM327 firmware update.
- EDIABAS 7.6.0 with DoIP support.
- BMW database corrected.
- Yandex Cloud support.
- Android 14 support.
- Allow to change lines display order from menu.

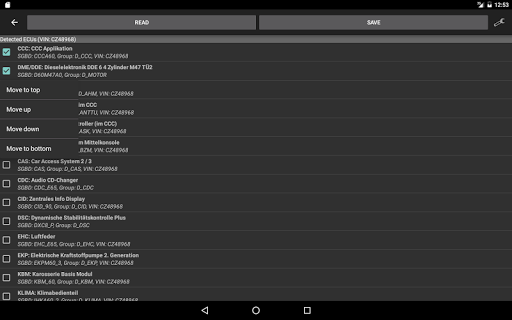

- Configuration generator: Long click to change ECU order.
- Fixed minor problems
- Improved BMW car and motorbike detection.
- Improved network proxy handling.
- Fixed minor problems
- Stabilized BMW ECU detection.
- Motorbike detect option added.
- DeepL translation.
- Added first simple BMW service functions.
- Fixed minor problems
- Stabilized BMW ECU detection.
- Motorbike detect option added.
- DeepL translation.
- Added first simple BMW service functions.
- Fixed minor problems
- Motorbike detect option added.
- DeepL translation.
- Added first simple BMW service functions.
- Fixed minor problems
- Improved transmission cancel.
- Support for BK7321QN WiFi chip.
- Improved search function.
- Support for hotspot mode.
- Adapter IP editable.
- Fixed minor problems
- Fixed Bluetooth access rights.
- Added ELM327 firmware.
- Improved Bluetooth pairing.
- Improved expansion file download.
- Optimized Bluetooth timeout.
- Fixed external storage access.
- Android 13 support.
- Read BMW info codes.
- Option to show only relevant BMW errors.
- Improved VAG error reset.
- UniCarScan UCSI-2100 / UCSI-3000 and vLinker support.
- Fixed minor problems
